Arch Fender

Name: "Arch Fender"
Rating: 5 (71 reviews)

SKU: 6511825124

Model: Arch Fender

Product Details

Product Specification

Type	Arch Fender	Model	Arch Fender
Params	- Rated Deflection: 52.5% (standard design working point) - Max permissible deflection: 55% (ultimate compression limit, over-compression forbidden) - Material: Marine NR/SBR compound; optional CR for oil resistance, EPDM for UV & ozone resistance - Hardness: Shore A 60 ~ 70 - Tolerance: Reaction Force ±10%; Energy Absorption -10% - Standard:PIANC - Operating temperature: -30℃ ~ +80℃ - Performance is linearly proportional to fender length	Material	Natural rubber
Applicable Industry	Marine industry

Feature

Arch Fenders are simple and rugged marine fender systems, providing reliable and trouble-free service for a wide variety of berths even under the most severe conditions. The Super arch fender is a traditional rubber-faced unit whilst the SANP-fender can be fitted with either UHMW-PE face pads or connected to a steel panel. Features Simple one-piece design Strong and hard wearing Excellent shear performance Wide range of standard sizes Application RoRo berths General cargo Workboat harbours Barge and tug berths

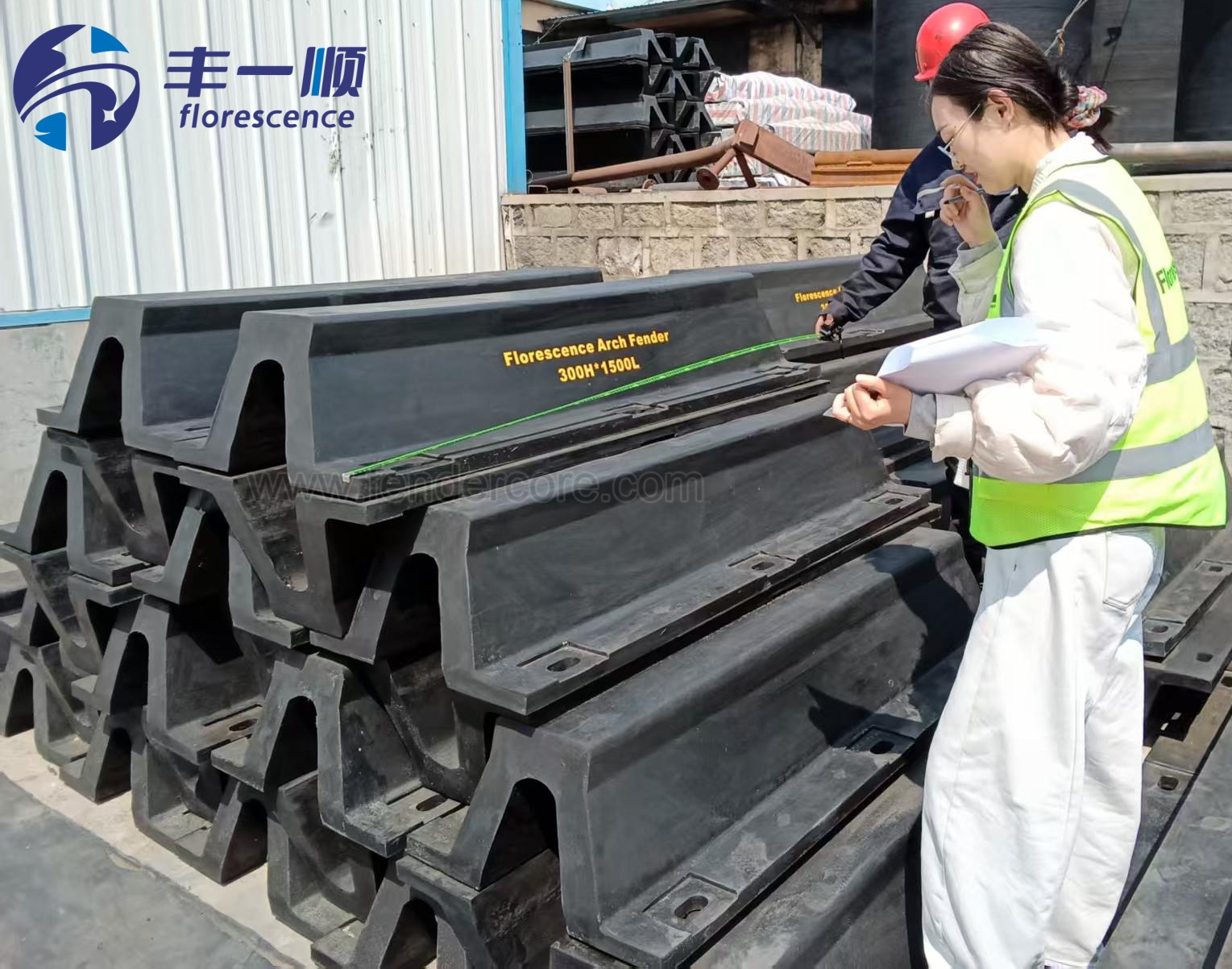

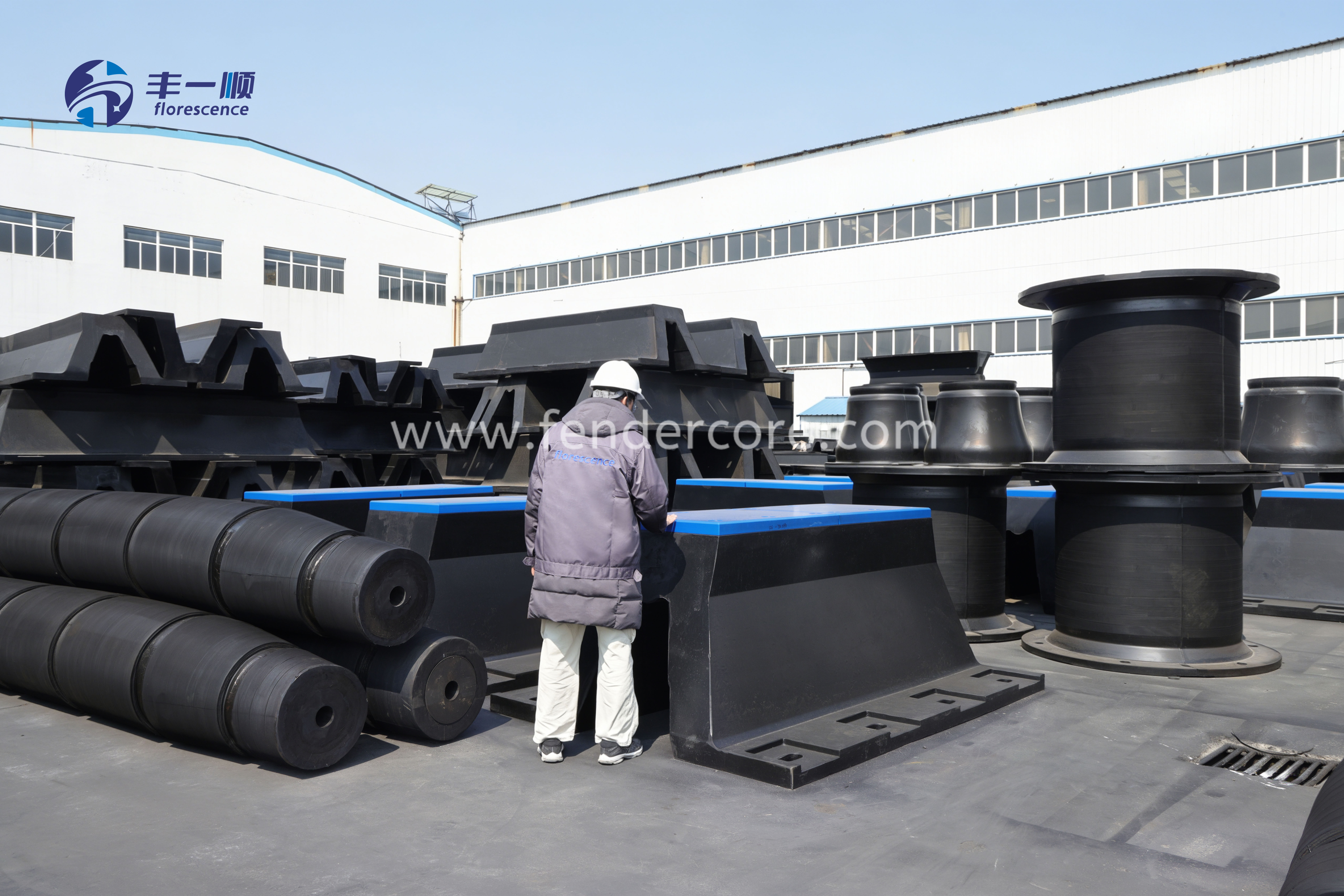

Arch fender

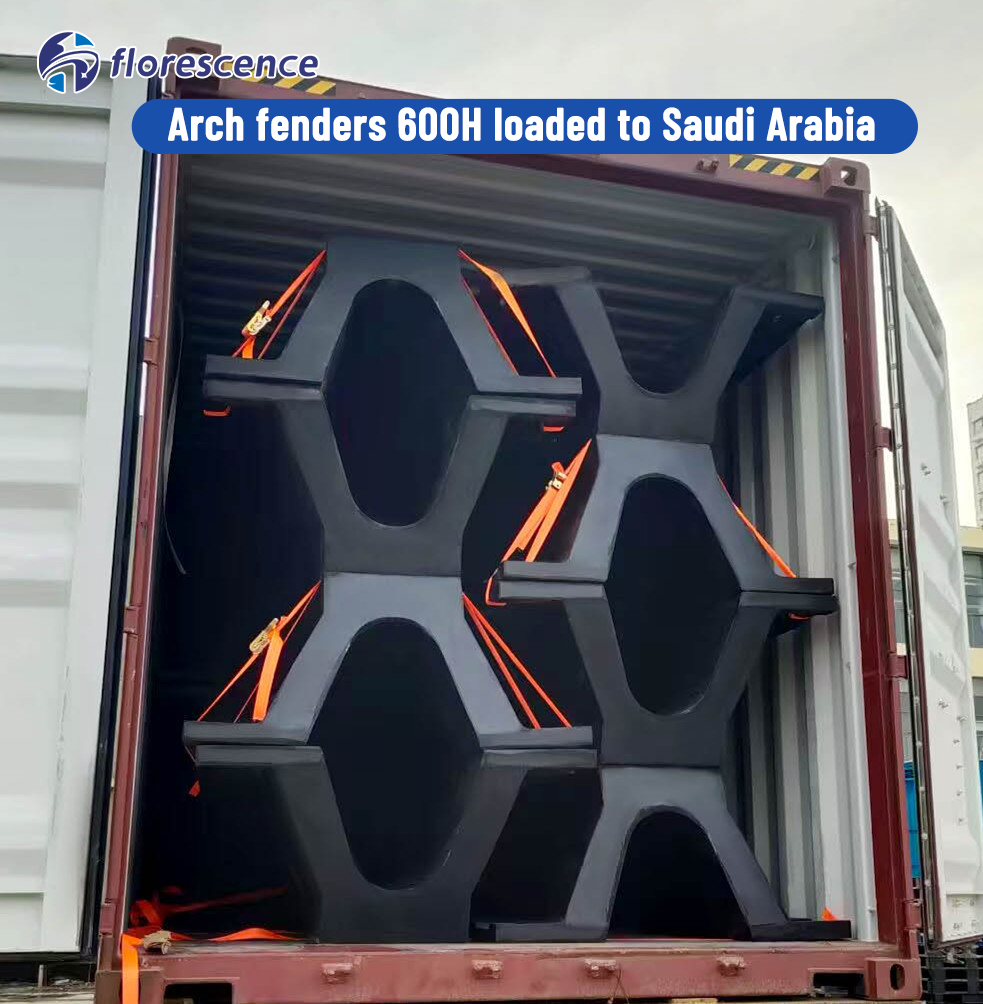

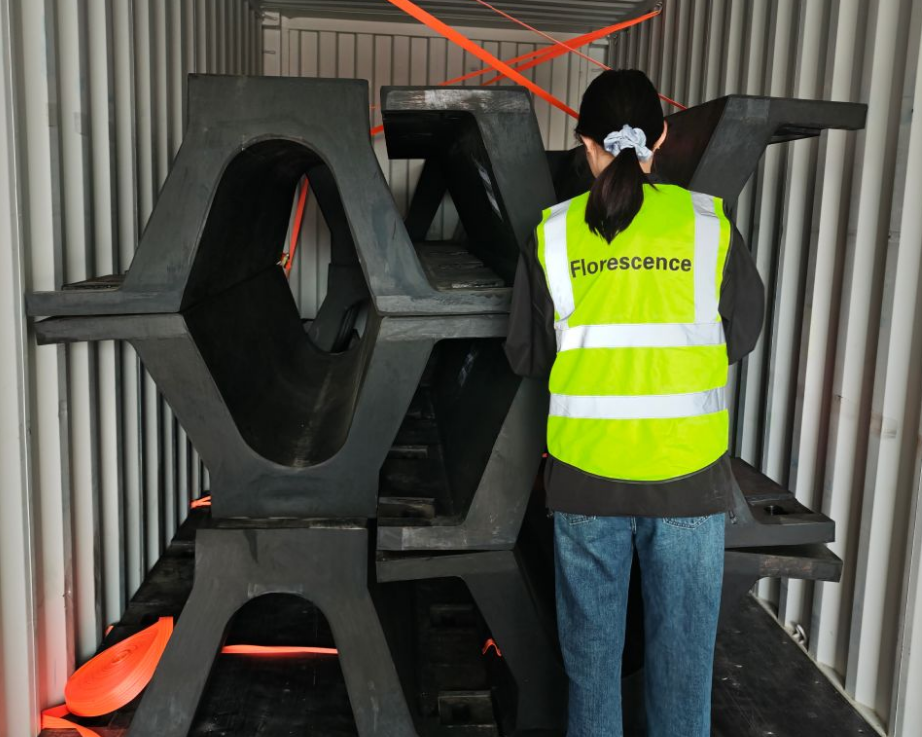

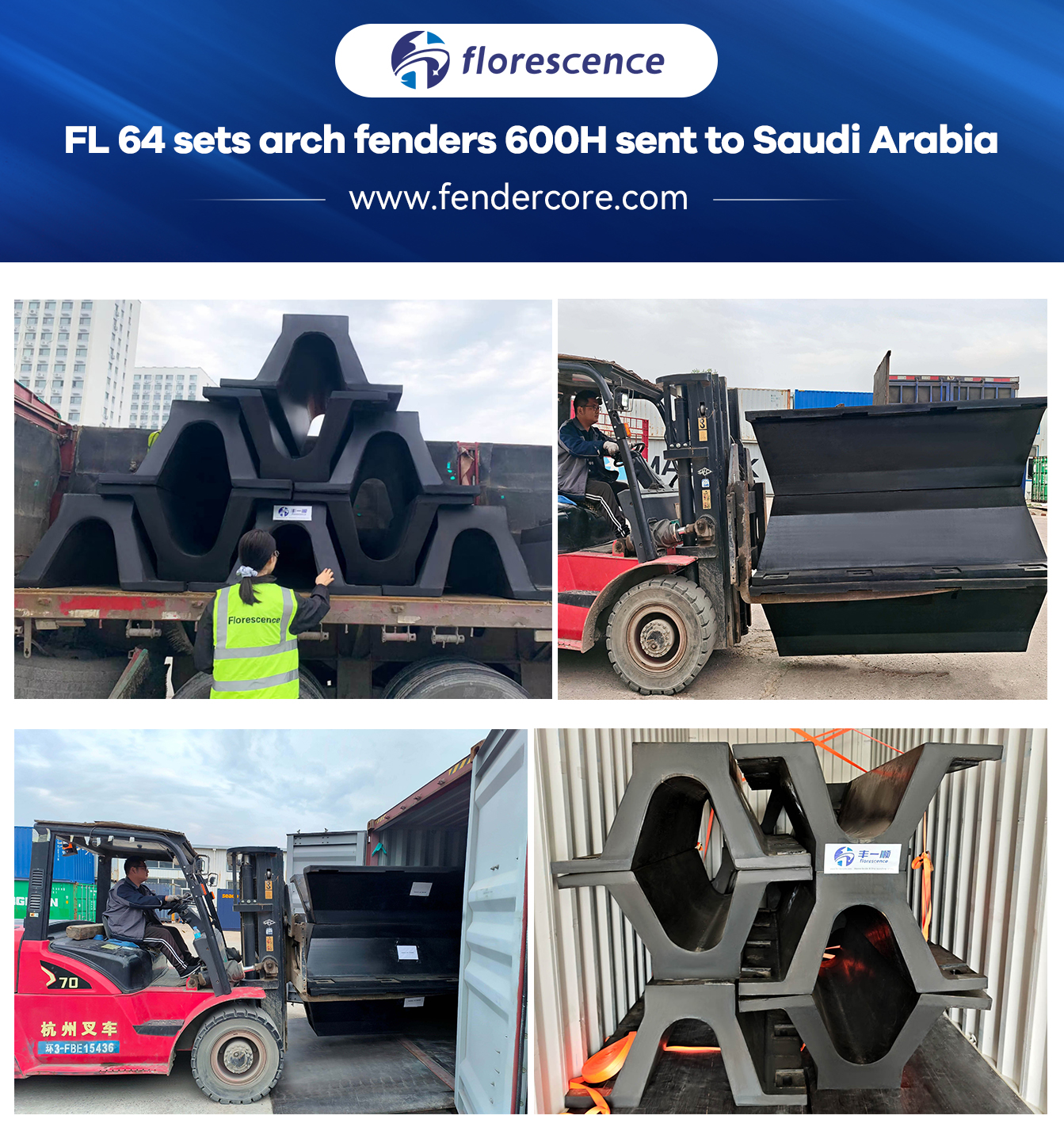

64 sets Arch 600x2000 to Saudi Arabia

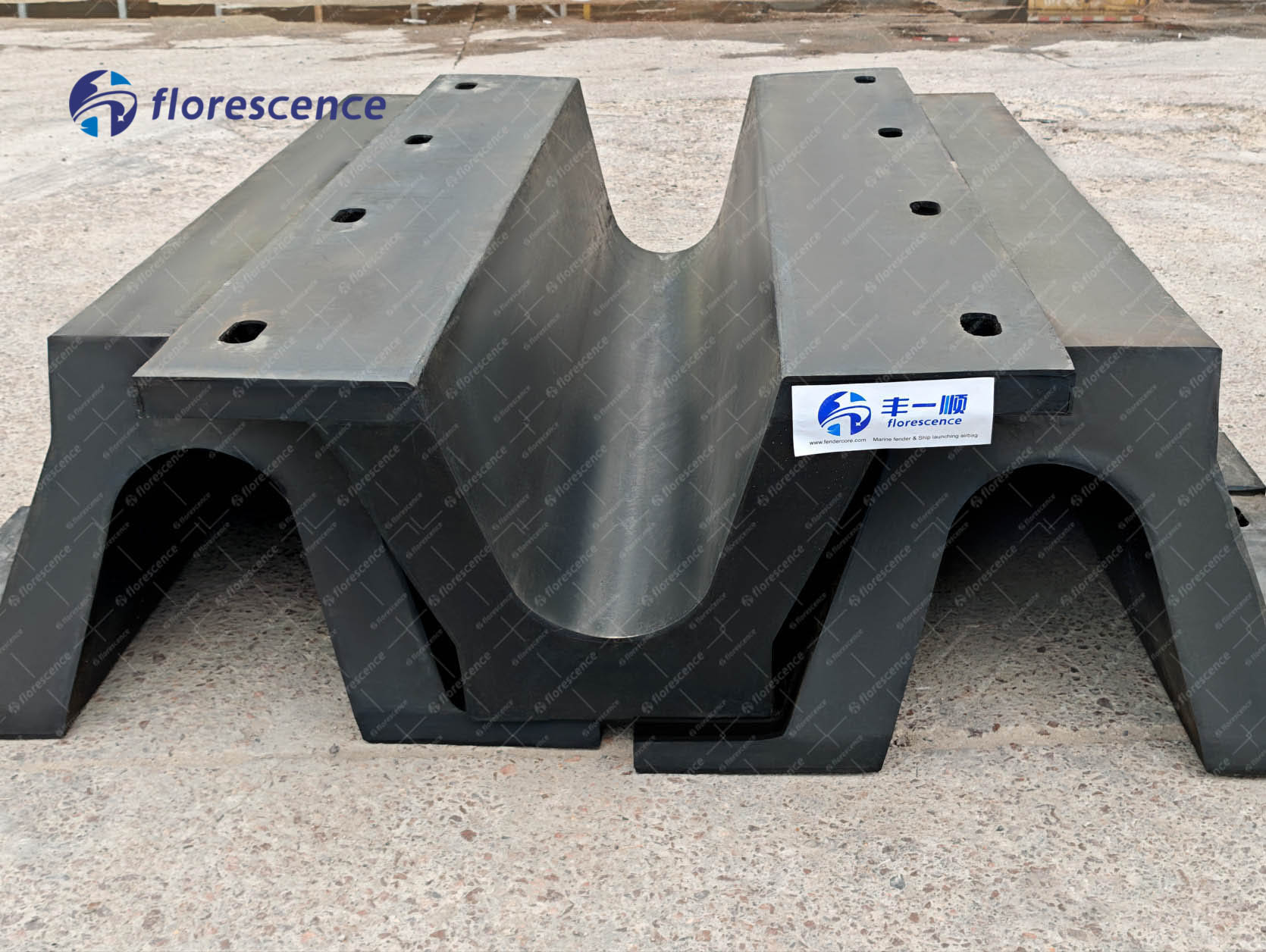

Arch fender
